cert-manager

Self-hostedSaaS
Namecert-manager
Typekubernetes-operator
Deployhelm-chart
Backupmanual
Scaling
CLIcmctl
UI

✅ Architectire​

  • creates TLS certificates for workloads in your Kubernetes or OpenShift cluster and renews the certificates before they expire.
  • can obtain certificates from a variety of certificate authorities, including: Let's Encrypt, HashiCorp Vault, Venafi and private PKI.
  • private key and certificate are stored in a Kubernetes Secret which is mounted by an application Pod or used by an Ingress controller
  • With csi-driver, csi-driver-spiffe, or istio-csr , the private key is generated on-demand, before the application starts up; the private key never leaves the node and it is not stored in a Kubernetes Secret.

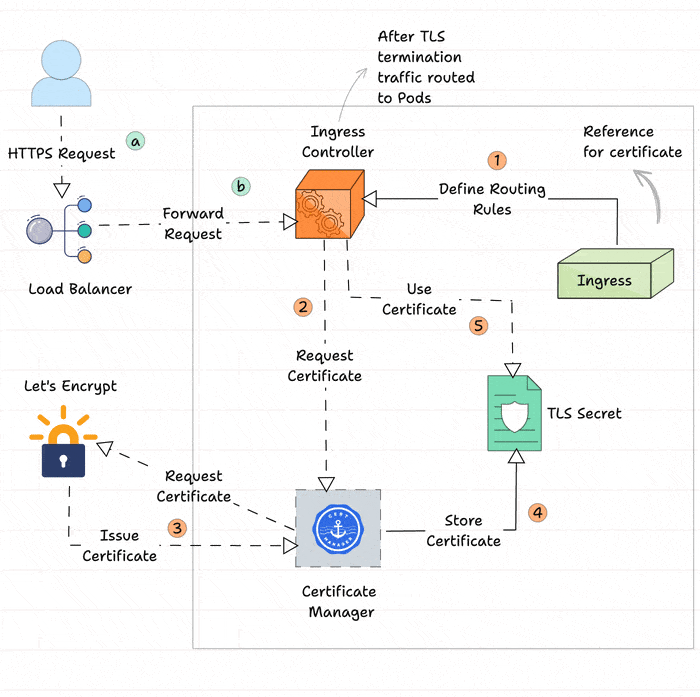

cert manager workflow

  1. The Ingress object will be created with the reference of the Cert Manager Issuers.
  2. The Ingress Controller will get the information from the Ingress object and request a certificate from the Cert Manager.
  3. The Cert Manager will request the Certificate Authority, for example, Let's Encrypt.
  4. After the verification, the CA will generate and provide the certificate to the Cert Manager.
  5. The generated certificate will be stored in Kubernetes as a TLS Secret.
  6. The Ingress Controller will encrypt the traffic using the stored certificate for the TLS termination.
  7. When a user tries to access the application, the external traffic is routed from the external Load Balancer to the Ingress Controller.
  8. The TLS termination will happen in the Ingress Controller with the TLS certificate and securely route the traffic to the application Pods.

Usecases​

✅ Basic: TLS for local ingress-nginx (self-signed CA)​

self-signe CA cert for local use

openssl genrsa -out ca.key 4096
openssl req -new -x509 -sha256 -days 365 -key ca.key -out ca.crt
sudo security add-trusted-cert -d -r trustRoot -k /Library/Keychains/System.keychain ca.crt
kubectl create secret generic -n vault ca --from-file=tls.crt=ca.crt --from-file=tls.key=ca.key

create a ClusterIssuer for self-signed CA

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: cluster-issuer-nginx
spec:
  ca:
    secretName: ca

create a Certificate for ingress-nginx

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: demo-cert
spec:
  secretName: demo-tls-secret
  issuerRef:
    name: cluster-issuer-nginx
    kind: ClusterIssuer
  dnsNames:
    - demo.home.lab

use secret created by Certificate in Ingress resource definition:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo
spec:
  # . . .
  tls:
  - hosts:
    - demo.home.lab
    secretName: demo-tls-secret

Common: TLS for exposed ingress-nginx (Let's Encrypt)​

Let's Encrypt Example

https://www.f5.com/company/blog/nginx/automating-certificate-management-in-a-kubernetes-environment

  • letsencrypt
  • cloudflare
  • aws/gcp/azure
  • vault-pki

Advanced: secure Istio service mesh​

✅ Monitoring​

Official docs

https://cert-manager.io/docs/devops-tips/prometheus-metrics/

Grafana Dashboard

https://grafana.com/grafana/dashboards/20340-cert-manager/

  • enable metrics and PodMonitor
cert-manager:
  prometheus:
    enabled: true
    podmonitor:
      enabled: true

Maintenence​

Patform integration​

how this tool integrated into a platform how to use it in a platform how to debug
